Car Hud – Head Up Display Digital Universal HUD Speedometer Display Speedometer Car Truck Odometer with Over Speed Warning Car Clock

$44.71

Added to wishlistRemoved from wishlist 0


Price: $44.71
(as of Mar 29,2022 00:46:24 UTC – Details)



Description:
HUD short for Head Up Display. It displays driving datas on the front windshield such as speed, rpm, fuel consumption, water temperature, voltage; avoiding drivers become dangerous because of watching the instrument while driving. Drivers can read the driving information instantly, and can always keep the best state on the way with HUD.

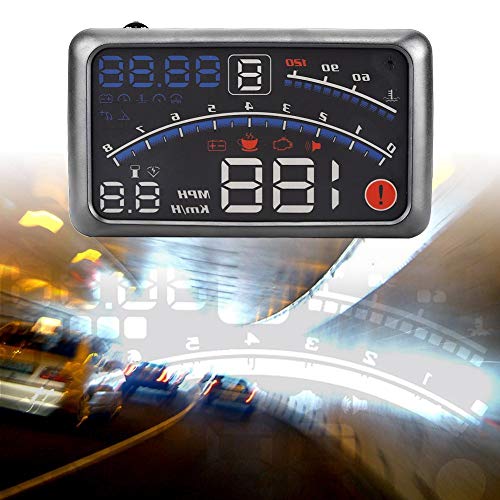

Main display information:
1.Brightness sensor
2.Water temperature icon
3.Water temperature scale
4.Engine RPM scale
5.Over speed alarm
6.Gear display
7.Multi-function value
8.Icon for engine RPM,inlet pressure,water temperature,clock,voltage,ignition angle,acceleration time for 100 Kilometers
9.Throttle position and fuel consumption
10.Multi-function value
11.Buzzer mark,engine fault,fatigue alarm,voltage alarm,data transfer
12.Speed unit
13.Calls and SMS alerts(this function is not opened now)

HUD installation:
1. Know your vehicle brand,HUD work for cars with OBDII agreement or EU OBD agreement. Open the engine hood and find the sticker below it (see the below picture 1), if it has words like OBDII CERTIFIED, then it can be installed.
2. Find out the 16 pin diagnostic link (see the below picture 2) of the vehicle and connect it well with OBDII connecting line.

Specification:
Environment temperature: -40c- + 80c atmospheric pressure 86-106KPa
Relative Humidity: 10% -95% environmental noise <= 60dB (A)
Alarm sound level: “= 30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
HUD size: 150*85*14(mm)
HUD Weight: 280g

Package included:
1 x HUD
1 x OBD Cable
1 x Reflecting Film
1 x Pad
1 x English User Manual

Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.

Date First Available ‏ : ‎ July 16, 2019
Manufacturer ‏ : ‎ Reminnbor
ASIN ‏ : ‎ B07VB3NRCR

【Application】Available for cars with OBD2 and EUOBD port(Car automatic diagnosis system), plug and play. – head up display
【Quality Assurance】Welcome to purchase our products. Our products have undergone strict quality control to ensure that each customer can purchase their favorite products. If you encounter any problems, please feel free to contact our customer service, thank you! – hud
【Key Information Display】It displays driving datas on the front windshield such as speed, rpm, fuel consumption, water temperature, voltage; avoiding drivers become dangerous because of watching the instrument while driving. Drivers can read the driving information instantly, and can always keep the best state on the way with HUD – hud
【healthy Alarm】Over speed alarm include single-speed alarm and four-stage alarm.Engine RPM alarm can help to fuel-efficient by shifting, and is good for novice – display hud per auto
【Auto power on/off】HUD start and off with vehicle started and shutdown, effective protection of the car battery;retaining the manual switch mode,more easy to control HUD – headup display auto obd2
